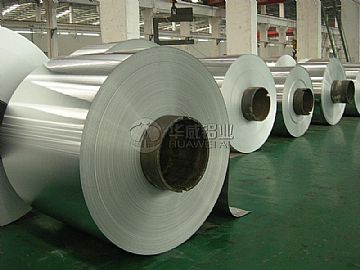

5005 Aluminum Coil

5005 Aluminum Coil

Alloy : 5005
Thickness : 0.15-6.0mm
Width : 25-1600mm
Certificated : ISO
Loading Port : QingDao.China
Price : 2500-3500$/Ton

5005 Aluminum Coil Description

5005 Aluminum Coil description:

5005 aluminum coil of HuaWei Alu is certificated to ASTM, EN as well as JIS, etc. and it can be cut to size at customers’ need. Mg is the principal element in the 5005 aluminum coil and when it used as main alloying element or combined with Mn, high strength and no-heat treatable properties can be realized. 5005 aluminumcoil ofHuaWei Alu. has many tempers available, such as 5005-H12, 5005-H14, 5005-H16, 5005-H18,5005-H22, 5005-H24, 5005-H32, 5005-H34, 5005-H36, 5005-H38, etc.

5005 Aluminum Coil checmical composition:

Elements

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others

Al

Content

0.3

0.7

0.2

0.2

0.5-1.1

0.1

0.25

-

0.15

Remain


5005 Aluminum Coil checmical application:

5005l aluminum coil strength and 3003 equivalent, weld metal, good workability 5005 aluminum plate and 3003 alloy similar, with moderate strength and good corrosion resistance. Anodic oxide film is more bright than the oxide film on the 3003 alloy, and is consistent with the tone of the 6063 alloy.

 5005 aluminum coil is also a non-heat treatable alloy and it can be strengthened (hardened) by cold working. However, hot working should not normally be necessary. Besides, it scores well in formability, especially in softer tempers. The machinability of 5005 aluminum coil is generally fairly poor. 5005-H34 and 5003-H38 can be machined, but with much more difficult than many other aluminum alloys.

As a professional manufacturer and supplier of 5005 aluminum coil based in China, we also provide aluminium slit coil, anodising aluminum sheet, 5 bar aluminum tread plate, aluminum strip, aluminum sheet, diamond aluminum tread plate, and more. Whenever you have a need for any of our products, please feel free to contact us at Huawei.
